Land Base VHF Extreme - Unity Gain AntennaSPIRIT SERIES
VHF ANTENNA FOR SEVERE ENVIRONMENT
Low Profile/Broad  Bandwidth Fiberglass
Omnidirectional Unity Gain Antenna

Model  Number
  • HSU-15060 (150-160 MHz.)
  • HSU-16070 (160-170 MHz.)
  • HSU-21626 (216-226 MHz.)
    • Frequency  Range:  150-170 MHz. & 216-226 MHz.
      Models available in 10 MHz. segments
    • Gain:  UNITY
    • Bandwidth: 10 MHz.
    • V.S.W.R.:  1.5:1
    • Polarization:  Vertical
    • Power Rating:  600 Watts Maximum Continuous
    • Termination: Type N Female
    • Vertical Aperature
      (3 dB from max): 80 Degrees
    • Weight:  10 lbs. (4.5 kg.)
    • Wind Load
      (Lateral thrust @ 100 mph): 35 lbs. (15.8 Kg.)
    • Wind Area
      (flat plate equivalent): 0.8 sq. ft. (0.07 sq.m.)
    • Maximum Wind Speed:  150 mph (241 kph.)
    • Material:
      • Feed Lines: Copper
      • Radiators: Copper
    • Color: Radome White
    • Mounting (top or side mount): Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
    • Lightning  Protection: Direct Ground

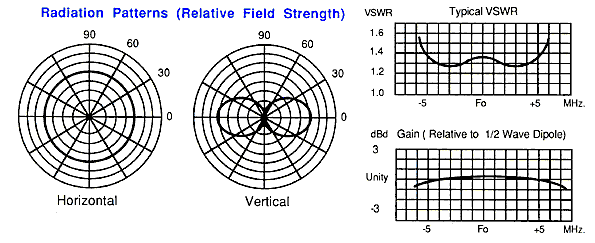

Radiation pattern
