SPIRIT SERIES Low Profile/Broad Bandwidth UHF Omnidirectional Fiberglass Antenna Model Number
- HS6-40630 (406-430 MHz.)
- HS6-43050 (430-450 MHz.)
- HS6-45070 (450-470 MHz.)
- HS6-47090 (470-490 MHz.)
- HS6-49051 (490-512 MHz.)
- Frequency Range: 406-512 MHz.
- Gain: 6 dBd (8.15 dBi)
- Bandwidth: 20 MHz.

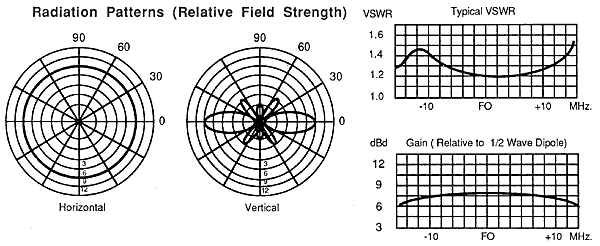

- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 400 Watts Maximum Continuous
- Termination: Type N Female
- Vertical Aperature (3 dB from max): 15 Degrees
- Weight: 10 lbs. (4.6 kg.)
- Wind Load (Lateral thrust @ 100 mph): 68 lbs.
- Wind Area (flat plate equivalent): .88 sq. ft. (0.081 sq.m.)
- Maximum Wind Speed: 130 mph (209 kph.)
- Material:
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White
- Mounting (top or side mount): Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct Ground
- Accessories: Reflector Tube (adds 3 dBb directional).
|
