SPIRIT SERIES 6 dBd GAIN CELLULAR/TRUNKING/PAGING Omnidirectional Fiberglass Antenna Model Number
- HS6-80669 (806-869 MHz.) TRUNKING
- HS6-82496 (824-896 MHz.) CELLULAR
- HS6-89060 (890-960 MHz.) GSM
- HS6-90142 (901-942 MHz.) PAGING
- HS6-92040 (920-940 MHz.) PAGING
- Frequency Range: 806-960 MHz
- Gain: 6 dBd (8.15 dBi)
- Bandwidth: Varies with model (see above)
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 400 Watts Maximum
- Termination: Type N Female or 7/16
- Vertical Aperature
(3 dB from max): 16 Degrees
- Weight: 7 lbs. (3.2 kg.)
- Wind Load
(Lateral thrust @ 100 mph): 22 lbs. (97.7 N)
- Wind Area
(flat plate equivalent): .58 sq. ft. (0.053 sq.m.)
- Maximum Wind Speed: 160 mph (257 kph.)
- Material:
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White

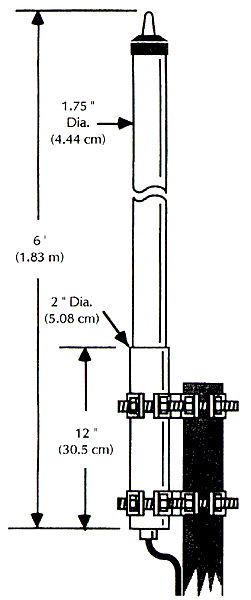

- Mounting (top or side mount): Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct Ground
- Accessories: Reflector Tube (adds 3 dB directional) and Side Mount Kit optional.
![](../assets/images/lm3_spirit6db_806-960rad.gif)
|
