![1.2 - 1.3 GHz Antenna](../assets/images/am6_12_13Ghzsm.gif) 1.2-1.3 GHz. ANTENNA Model Number:
- HS6-12430 (6 dBd)
- HS9-12430 (9 dBd)
- HS10-12430 (10 dBd)
- HS12-12430 (12 dBd)
- Gain: 6 dBd, 9 dBd, 12 dBd
- Bandwidth: 80 MHz.
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 300 Watts Maximum
- Termination: Type N Female

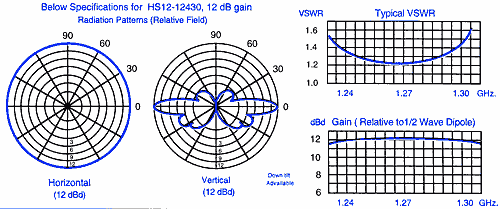

- Vertical Aperture (3 dB from max.):
- 18 degrees (6 dBd)
- 4 degrees (12 dBd)
- Weight: 10 lb.
- Wind Load (Lateral thrust @ 100 mph): 52 lb.
- Wind Area (flat plate equivalent): 1.2 sq. ft.
- Maximum Wind Speed: 160 mph
- Material Feed Lines: Copper
- Radiators: Copper
- Color Radome: White Fiberglass
- Mounting: Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct Ground
|
