  2 Meter 2 METER VHF ANTENNA
Model Number
- HSU-14448 (Unity)
- HS3-14448 (3 dBd)
- Gain: Unity, 3 dBd
- Bandwidth: 4 MHz.
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 500 Watts Maximum
- Termination: Type N Female

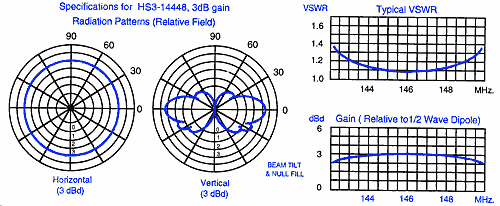

- Vertical Aperture (3 dB from max.)
- 75 Degrees (Unity)
- 36 Degrees (3 dBd)
- Weight: 8 lb.
- Wind Load (Lateral thrust @ 100 mph): 41 lb.
- Wind Area (flat plate equivalent): 0.51 sq. ft.
- Maximum Wind Speed: 160 mph
- Material Feed Lines: Copper
- Radiators: Brass
- Color Radome: White Fiberglass
- Mounting:
- Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct Ground
|
