Land Base VHF Extreme 3 dB AntennaSPIRIT SERIES
VHF ANTENNA FOR SEVERE ENVIRONMENT
Low Profile/Broad  Bandwidth Fiberglass
Omnidirectional 3dBd Gain Antenna

Model  Number
  • HS3-15060 (150-160 MHz.)
  • HS3-16070 (160-170 MHz.)
  • HS3-21626 (216-226 MHz.)
    • Frequency  Range:  150-170 MHz. & 216-226 MHz.
      Models available in 10 MHz. segments
    • Gain:  3 dBd
    • Bandwidth: 10 MHz.
    • V.S.W.R.:  1.5:1
    • Polarization:  Vertical
    • Power  Rating: 600 Watts Maximum Continuous
    • Termination: Type N Female
    • Vertical Aperature
      (3 dB from max): 36 Degrees
    • Weight
    • 17 lbs. (7.7 kg.)
    • Wind Load
      (Lateral thrust @ 100 mph)
    • 41 lbs. (18.6 Kg.)
    • Wind Area (flat plate equivalent)
    • 1.1  sq. ft. (0.1 sq.m.)
    • Maximum  Wind Speed
    • 150  mph (241 kph.)
    • Material
      • Feed Lines:  Copper
      • Radiators: Copper
    • Color: Radome White
    • Mounting (top or side mount):  Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
    • Lightning  Protection: Direct Ground

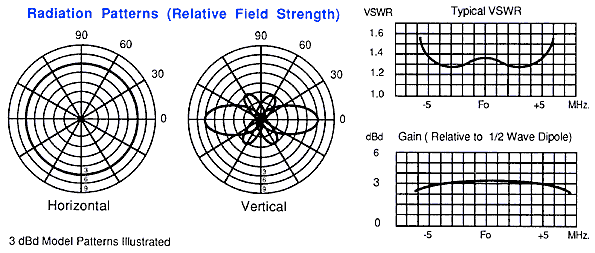

Radiation pattern
